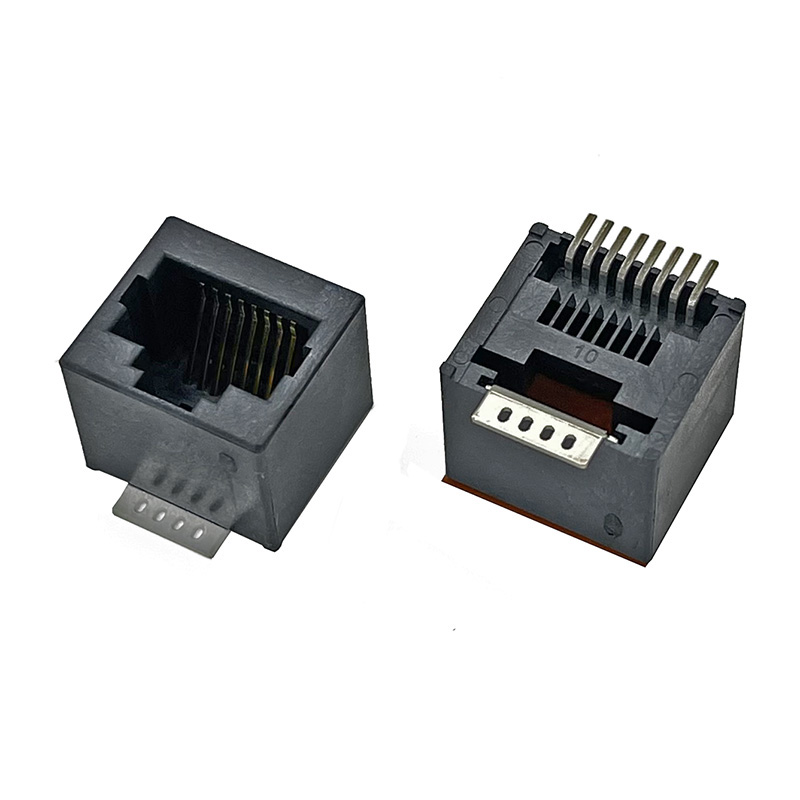

RJ45 JACK 8P8C 180度SMT贴片插座网口
产品描述:
RJ45/RJ11插座系列产品技术参数
电气性能
额定电流: 1.5 AMPS
额定电压: 125 V AC
绝缘电阻: 1000 MΩ Min. @ 500V DC EIA-364-21C
耐压强度: 1000 V AC 或 1500V DC RMS @ 0.5mA 50 Hz 或 60 Hz 一分钟 EIA-364-20B
接触电阻: 1XN圆针35 mΩ Max.()1XN扁针45 mΩMax.( )
2XN圆针40 mΩ Max.( )2XN扁针50 mΩMax.( ) EIA-364-23
机械性能
插入/拔出力: 22N / 2.27kg Max. EIA-364-13B
配合强度: 封闭型插座57.83N Min.( ) EIA-364-98 ; 开口型插座30N Min. ( )
使用寿命: 750次插拔 Min. EIA-364-9C
环境性能
工作温度: -40℃~+85℃ ( ) -20℃~+70℃ ( ) (适用PC,ABS)
储存温度: -10℃~+40℃ 相对湿度<80% GB 10753-89
材料
塑壳: PBT( )PA46( )PA66( )ABS( )PC( ),( ), UL94V-0 OR UL94V-2
端子: 直径0.46mm( )或 厚度0.35mm( ) 磷青铜, 镀镍后镀金
可选镀金厚度: Fu inch( ) G/F inch( ) 3u inch( ) 6u inch( )
15u inch( ) 30u inch( ) 50u inch( )
RJ45/RJ11 SERIES JACK PRODUCT SPECIFICATION
ELECTRICAL
CURRENT RATING: 1.5 AMPS
VOLTAGE RATING: 125 V AC
INSULATION RESISTANCE: 1000 MΩ Min. @ 500V DC EIA-364-21C
WITHSTAND VOLTAGE: 1000 V AC OR 1500V DC RMS @ 0.5mA 50 Hz / 60 Hz 1 Minute EIA-364-20B
CONTACT RESISTANCE: 1XN ROUND PIN 35 mΩ Max.( )1XN FLAT PIN 45 mΩMax.( )
2XN ROUND PIN 40 mΩ Max.( )2XN FLAT PIN 50 mΩMax.( ) EIA-364-23
MECHANICAL
MATING/UNMATING FORCE:22N / 2.27kg Max. EIA-364-13B
RETENTION STRENGTH:57.83N Min.( ) EIA-364-98 ; 30N Min. ( )
DURABILITY: 750 MATING/UNMATING CYCLES Min.
ENVIRONMENTAL
OPERATION TEMPERATURE:-40℃~+85℃ ( ) -20℃~+70℃ ( )
STORAGE TEMPERATURE: -10℃~+40℃ RELATIVE HUMIDITY<80%
MATERIAL
HOUSING:PBT( )PA46( )PA66( )ABS( )PC( ),( ) , UL94V-0 OR UL94V-2
TERMINAL: DIAMETER 0.46mm( ),THICKNESS 0.35mm( ) PHOSPHOR BRONZE,
SELECTIVE GOLD PLATING OVER NICKEL
GOLD PLATING: Fu inch ( ) G/F inch( ) 3u inch( ) 6u inch( )
15u inch( ) 30u inch( ) 50u inch( )
注:“括号部分为可选项”!
